Bulletin No. CUB4RT/TC-X

Drawing No. LP0583

Effective 10/04

Tel +1 (717) 767-6511

Fax +1 (717) 764-0839

www.redlion.net

MODEL CUB4RT/TC - INTELLIGENT TEMPERATURE INDICATORS

PROGRAMMABLE INPUTS

CUB4TC - Thermocouple types T, E, J, K, R, S, B, N, or mV

CUB4RT - RTD types Pt385, Pt392, Ni672, Cu427

PROGRAMMABLE TEMPERATURE OFFSET

SELECTABLE F or C WITH 1 or 0.1 RESOLUTION

F OR C DISPLAY ANNUNCIATORS

CONFORMS TO ITS-90 TEMPERATURE SCALE

COLD JUNCTION COMPENSATION (Enable/Disable) CUB4TC

0.48 INCH (12.2 mm) HIGH DIGITS

5 DIGIT LCD, POSITIVE REFLECTIVE OR NEGATIVE

TRANSMISSIVE WITH RED BACKLIGHT

UL Recognized Component,

File # E179259

NEMA 4X/IP65 SEALED FRONT BEZEL

DESCRIPTION

These CUB4 temperature meters are 9 to 26 VDC powered, microprocessor

based indicators, with a selectable decimal point. Models are available for use

with RTD or Thermocouple sensors. The CUB4TC offers cold junction

compensation and a mVDC display mode with a range of -10.00 to 60.00 mV.

Programmable features include temperature type, Fahrenheit or Celsius display,

input filtering range, and user offset.

SAFETY SUMMARY

All safety related regulations, local codes, and instructions that appear in the

manual or on equipment must be observed to ensure personal safety and to

prevent damage to either the instrument or equipment connected to it. If

equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

CAUTION: Read complete instructions prior to installation and

operation of the unit.

ORDERING INFORMATION

SPECIFICATIONS

1. DISPLAY: Reflective LCD or Transmissive LCD with red backlight, 5 digit

display 0.48"(12.2 mm) height, F or C annunciator.

2. POWER: 9 to 26 VDC @ 65 mA with backlight, 25 mA without backlight.

Reverse polarity protected.

Must use the MLPS or a Class 2 or SELV rated power supply.

CUB4TC Backlight version : 0.15 ° C/Volt CJC error if powered from other

than 12 VDC. May be compensated with offset.

Example: 24 VDC supply, (24V-12V)*0.15 °C/V = 1.8 °C,

Enter -1.8 °C user offset.

3. TEMPERATURE EFFECTS:

CUB4RT Span Drift : 100 ppm/°C Max

CUB4TC Span Drift : 150 ppm/°C Max.

Zero Drift : < 1 μ V/°C Max.

4. ENVIRONMENTAL CONDITIONS:

Operating Temperature Range : 0 to 50 °C

Storage Temperature Range : -30 to 85 °C

Operating and Storage Humidity : 85% max. relative humidity

(non-condensing) from 0 to 50 °C.

Altitude : Up to 2000 meters (6561 feet)

5. MAIN SENSOR INPUT RANGES AND ACCURACIES

Isolation : The sensor input and excitation, if applicable are not isolated from

the power supply.

Response Time : 500 msec

MODEL NO.

CUB4RT

CUB4TC

MLPS

DESCRIPTION

RTD Indicator, Reflective LCD

RTD Indicator, Red Backlit Transmissive LCD

Thermocouple Indicator, Reflective LCD

Thermocouple Indicator, Red Backlit Transmissive LCD

Micro Line/Sensor Power Supply

PART NUMBER

CUB4RT00

CUB4RT20

CUB4TC00

CUB4TC20

MLPS1000

Failed Sensor Display : OPEN

Overrange/Underrange Input : OLOL/ULUL

Overrange/Underrange Display : “…..”/”-…..”

Normal Mode Rejection : 40 dB @ 50/60 Hz

Common Mode Rejection : 100 dB @ DC to 60 Hz

Accuracies reflect ALL errors @ 12 VDC supply and 15 minute warm-up,

except probe errors and lead resistance effects.

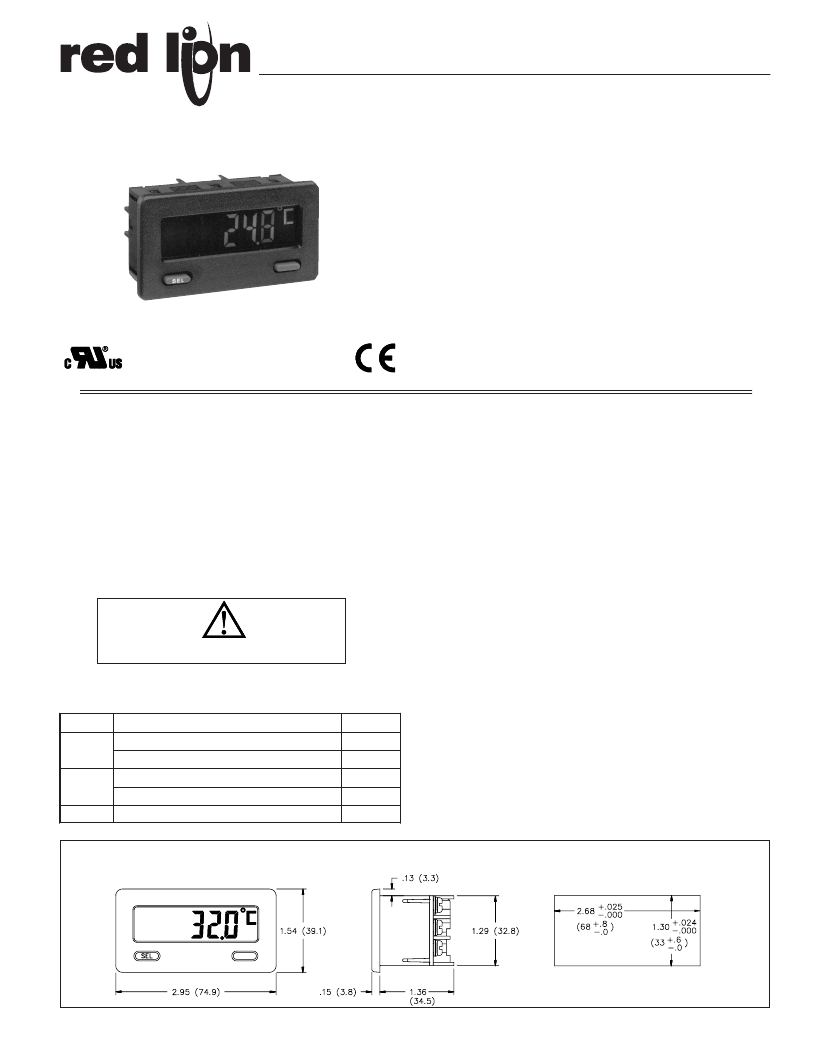

DIMENSIONS In inches (mm)

Note: Recommended minimum clearance (behind the panel) for

mounting clip installation is 2.1" (53.3) H x 3.0" (76.2) W.

PANEL CUT-OUT
